Kaleo IR


Kaleo IR

查看大图

Kaleo IR

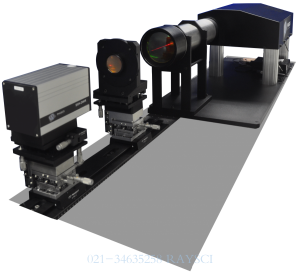

Phasics bench makes infrared lens quality control very simple. IR MTF is obtained in a single shot at all frequencies with no need for scanning or complex alignment. All wavefront aberrations are also provided with this single acquisition. The Kaleo IR Be

  • 货　　号：G5E8BDA77BC795
  • 品　　牌：Phasics
  • 销售价：
购买数量：
  (库存9999+)
app hook

COMPLETE MEASUREMENT

  • MTF
  • Wavefront error and aberrations
  • at multiple wavelengths

Infrared-lens-testing

FAST MEASUREMENT

  • Single shot acquisition
  • No scanning

EASY MEASUREMENT

  • Additional visible laser for alignment

COST-EFFECTIVE

  • Cost-effective interferometric results: phase, Zernike coefficients…
  • Multiple infrared wavelengths on a same bench thanks to our broadband infrared wavefront sensors

Specifications


SWIRDWIRLWIR
wavelength range0.4-1.7µm3-5 & 8-14µm 8-14µm
Phase sampling160 x 128160 x 120 160 x 120
