KaleoMultiWAVE

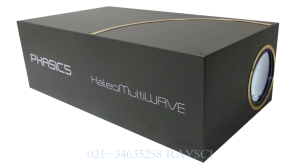

KaleoMultiWAVE
KaleoMultiWAVE

查看大图

KaleoMultiWAVE

The Kaleo-MultiWAVE bench is a unique instrument that delivers wavefront error at multiple wavelengths. Optics such as lenses, filters or mirrors can be characterized at their working wavelength. The KaleoMultiWAVE works at different wavelengths to perfor

  • 货　　号：G5E819FBE3257D
  • 品　　牌：Phasics
  • 销售价：
购买数量：
  (库存9999+)
app hook

POLYCHROMATIC INTERFEROMETER
Multiple wavelengths on the same bench

  • Standard: 625nm – 780nm – 1050nm
  • Custom wavelengths on demand: UV – 400-1100nm – SWIR



HIGH DYNAMIC RANGE
More than 20µm PtV

  • 10 µm PtV dynamics over large diameter
  • Highly aberrated wave front measurement



UPPER PRECISION
Interferometric level

  • Accuracy similar to interferometer
  • Very high repeatability
  • Very low noise



APPLICATIONS

  • Surface measurements
  • Coating (AR, Dielectric, Metallic)
  • Interference filters…





MARKETS

  • Optical manufacturers
  • Filter manufacturers
  • Space & Defense
  • Automotive



COMPLIANCE

  • Compliant with ISO 5725 standard
  • MetroPro format compatible
  • ISO 10110 format available

Specifications

SYSTEM
ConfigurationDouble pass
Measurement capabilityRWE of reflective surfaces TWE of transparent optics
Number of wavelengths per instrument1 or 2 (standard), up to 8 (custom)
Custom WavelengthsAny wavelength from 193 nm to 14 μm including:
UV: 266, 355, 405 nm VIS / NIR: 550, 625, 780, 940, 1050 nm
SWIR / MWIR / LWIR: 1.55, 2.0, 3.39, 10.6 μm
Clear Aperture5.1" (130 mm)
Beam height108 mm
Alignment systemLive phase & Zernike coefficients display
PolarizationCompatible with depolarizing optics
Alignment FOV+/- 2°
Accuracy (TWE)<20 nm RMS
Pupil focus range+/- 2.5 m
Dimensions / Weight910 x 600 x 260 mm, 25 kg
Vibration isolation<80 nm RMS
