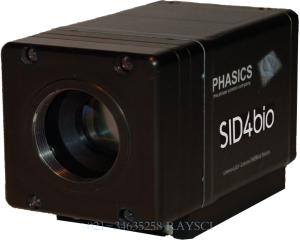

SID4Bio

The SID4Bio is a plug & play camera for quantitative phase imaging. It works with any microscope and enables measuring valuable numerical parameters on live cells.

  • 货  号:G5E818E21F3293
  • 品  牌:Phasics
  • 销售价:
购买数量:
  (库存9999+)
app hook

PLUG & PLAY CAMERA | for quantitative phase microscopy




  • Unique technology for instantaneous artefact-free quantitative phase imaging
  • Upper accuracy
  • Compact & mobile
  • Single part: Robust & no calibration needed


Specifications

Wavelength range400–1100 nm (compatible with white-light source, laser...)
Magnification10x to 200x
Aperture dimension 8.9 x 11.8 mm2
Lateral resolutiondepends on magnification
Down to 0.2μm on phase image
Resolution (Phase) < 1 nm RMS
Dry mass resolution<0.5 pg
Acquisition rate Up to 10Hz
Microscope interface C-mount
Dimensions54 x 46 x 79 mm
Weight~250 g
