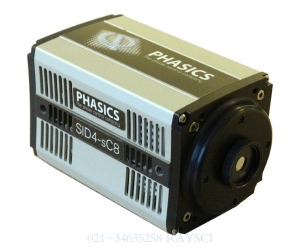

SID4-sC8

Designed for life science and material inspection microscopes, SID4-sC8 brings fast, accurate and truly quantitative phase measurement in a compact, plug-and-play solution. Biologists will benefit from label-free cell imaging, high sensitivity and automat

  • 货  号:G5E818D7DB4A4C
  • 品  牌:Phasics
  • 销售价:
购买数量:
  (库存9999+)
app hook
  • sCMOS sensor
  • Single shot phase and intensity measurement
  • Magnification from x2.5 to x150
  • Compatible with acquisition software: Metamorph, Micromanager, NIS-Elements…
  • Imaging at any wavelength

Specifications

Sensor technologysCMOS
Wavelength range450-1000 nm
Aperture dimensions16.6 x 14.0 mm²
Phase spatial resolution19.5 μm
Phase & Intensity sampling852 x 720
Resolution (Phase)<1 nm RMS
Acquisition rate40 fps
Real-time processing frequencyUp to 15 Hz (full resolution)
ConnectionUSB 3.0
Dimensions140 x 82 x 80 mm
