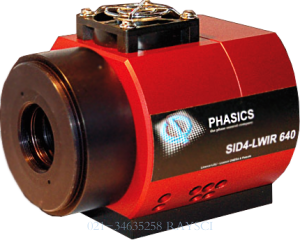

HIGH RESOLUTION PHASE & INTENSITY | in the far infrared region
- Achromatic over the whole LWIR band – from 8-14 µm
- Uncooled focal plane array technology
- High resolution : – 160 x 120 phase pixels
- Compact and easy to use – for easy integration in an optical bench
Specifications
| Wavelength range | 8 - 14 µm |
| Aperture dimension | 16 x 12 mm2 |
| Spatial resolution | 100 µm |
| Phase & intensity sampling | 160 x 120 |
| Resolution (Phase) | 25 nm RMS |
| Accuracy | 75 nm RMS |
| Acquisition rate | 24 fps |
| Real-time processing frequency | > 10 fps (full resolution) |
| Dimensions (w x h x l) | 96 x 110 x 90 mm |
| Weight | ~850 g |
