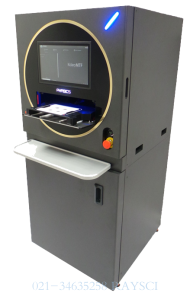

Kaleo MTF Measurement Station

ADVANTAGES

• Single shot measurement
• MTF measurement up to cut-off frequency
• Accuracy similar to interferometry
• High quality collimated source
• No need to realign for off-axis measurement
• Cost effective solution
• Several different wavelengths (RGB + IR by default)
• Measure at several azimuths
• Autofocus
• Fully automated measurement process
• Easy alignment & versatile application

OUTCOMES

---

• On-axis & Off-axis MTF
• Through focus MTF
• Transmitted wavefront error
• Zernike polynomials
• Lens parameters: EFL, F#
• OPD in the lens exit pupil
• Astigmatism
• Image distortion
• Field curvature
• Relative illumination curve

COMPLETE TEST

---

SOFTWARE

---

• Possibility to select wavelength, field angles, number of iterations (for repeatability assessment)
• Real-time display of relative illumination and intensity
• Setting database
