THz Gold Mirrors


查看大图

THz Gold Mirrors

THz Mirrors:Typical reflection curve is shown below. Measurements were made up to 1000 μm. However operating wavelength range is much wider.

  • 货  号:MR-QG-D76.2-T6.35-С
  • 销售价: ¥2300.00
购买数量:
  (库存10)
app hook
mirrors for applications where THz radiation has to be fully reflected.

Commom specification:

Material of substrateQuartz glass
Typeplano-plano
Dimensions tolerance,mm+/-025
Clear apperture, %>=90
Surface quality of polished surfaces, scr/dig40/20
Surface quality of ground surface, Ra2.5
Surface accuracy, λ@633nm1/4
Coating
protected gold
Thickness of gold layer, nm
~400
THz mirrors

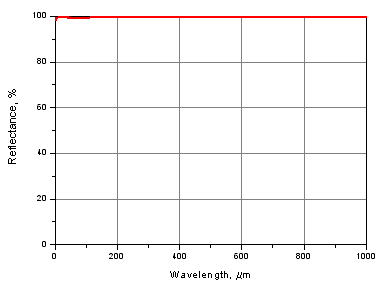

Typical reflection curve is shown below. Measurements were made up to 1000 μm. However operating wavelength range is much wider.

Fig. Reflection od THz mirror.

The following THz mirrors are available from stock:

No.DiameterThickness, mm
mminches
125.41.06.35
238.11.56.35
350.82.06.35
476.23.06.35
