CEBS系列台式连续掺铒宽带光源

Description:

rnrn

The CEBS series Erbium doped fiber broaband sources are designed for wide and flat spectral range operation up to 1W of total output power.

rnrn

Optical gain is filtered and flattened in order to achieve the widest spectral operation with minimum power variation accross the spectrum.

rnrn

The sources are available in linear or random polarization with respectively high or low degree of Polarization.

rnrn

These products are proposed in turnkey benchtop instruments with front panel and RS232 controls.

rnrn

Features:

rnrn

rn
•  High output power density (> +13 dBm/nm) rn
•  Flattened output power spectrum rn
•  High spectral stability rn
•  Linear or random polarization rn
•  User-friendly turnkey benchtop
rn

rnrn

Applications

rnrn

rn
•  Optical component characterization rn
•  Optical measurement systems rn
•  Optical sensing
rn

rnrn

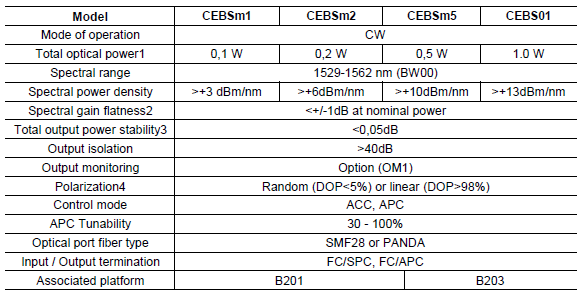

Specifications:

rnrn

rn

rnrn

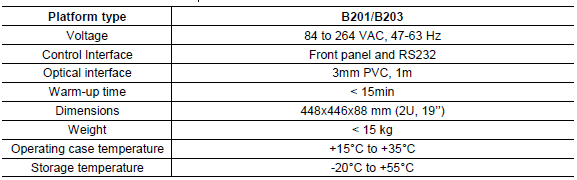

Platform Specifications:

rnrn

rn

rnrn

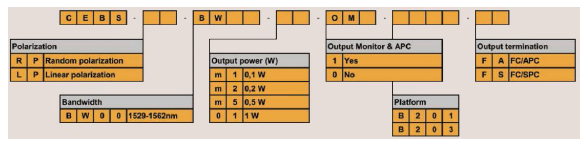

Ordering information:

rnrn

rn

rnrn

rn
