OptiXplorer灵活的教学演示系统

OptiXplorer灵活的教学演示系统

  产品概述

OptiXplorer是一款用于教学的演示系统。它为大学物理光学课程提供了多种实验。基本组成：HOLOEYE空间光学调制器（SLM），基于透射式SVGA液晶显示屏。此外还有几本详细的应用指南，一个应用软件和一个激光模块。因此OptiXplorer提供了一个有效的，低成本的教学工具，可以用来示范和探索多种光学现象。

应用指南中包含对多种实验的说明，如：投影装置中的振幅调制，偏振特性，LCD的特征，衍射光学器件，动态衍射，Mach-Zehnder干涉仪中的空间滤波和相位调制等。每个实验说明都包含了教学说明，需要的器件，详细的装置结构，问卷和准备实验的关键点。OptiXplorer有两款可选，分别是基础版和高级版。

特殊光学特征

l       振幅或相位调制

l       在200nm～700nm范围能够实现2π相位调制

l       532nm连续光源下，强度比达1000:1

l       USB接口

 OptiXplorer Basic

Standard Education Kit

The OptiXplorer is a kit for educational purposes, which provides a variety of experiments for introductory and advanced laboratory classes in physics and engineering study courses.

The main component of the OptiXplorer is a HOLOEYE spatial light modulator (SLM) with SVGA-resolution of 800 x 600 pixels. It is used in various applications such as image projection, adaptive optics, optical metrology and diffractive optics.

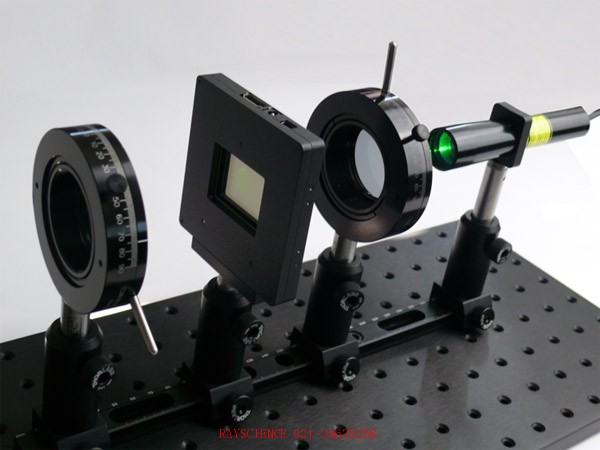

The kit also contains a detailed tutorial, application software, a 10 mW @ 650 nm laser module with beam expander and focus adjust, SLM mounting ring, laser mount and cable set.

It is a powerful product that allows the demonstration and active exploration of a wide range of optical phenomena for students at universities and university-level institutions.

The collection of experiments was developed in co-operation with the Institute of Solid State Physics at the University of Bremen, and the Laboratory for Coherence Optics at the Institute of Physics at Humboldt University Berlin. The tutorial covers a wide range of experiments, e.g. amplitude modulation in projection set-ups, polarization properties, LCD characterization, diffractive optics elements, dynamic diffraction, spatial filtering and phase modulation in a Mach-Zehnder interferometer.

HOLOEYE Photonics AG is a provider of products and services based on micro-structured optical components and computer-controlled optical wave manipulation. The company‘s main focus is on the development of adaptive micro-optics and diffractive components for scientific and industrial applications.  Products include spatial light modulators and diffractive optical elements.

HOLOEYE‘s spatial light modulator (SLM) systems are based on liquid crystal micro-displays. These devices can modulate light spatially in amplitude and phase, so they act as a dynamic optical element. The optical function or information to be displayed can be taken from the optic design directly and can be transferred by a computer interface.  Implementation is straightforward due to the smart system architecture and by easy addressing using VGA or DVI signals directly from a computer graphics card. In many cases there are no additional optical devices necessary or the SLM can be incorporated in existing optical setups and devices.

HOLOEYE also manufactures diffractive optic elements. Diffractive optics have unique properties that enable them to realise optical functions that are otherwise difficult or impossible with conventional optics, and can even perform the conventional optical functions of lenses, prisms or aspheres. Their advantages include reduced weight and size, but the main feature of diffractive optics is that they can act like optical wavefront processors. For full details click here.

• Digital holography
• Optical tweezers
• Image projection
• Laser beam shaping
• Coherent wavefront modulation
• Phase shifting
• Laser pulse modulation
• Beam splitting
