SID4-sC8


SID4-sC8

查看大图

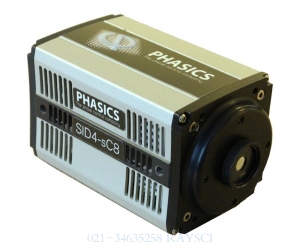

SID4-sC8

HIGH RESOLUTION sCMOS QUANTITATIVE PHASE IMAGING CAMERA Designed for life science and material inspection microscopes, SID4-sC8 brings fast, accurate and truly quantitative phase measurement in a compact, plug-and-play solution. Biologists will benefit

  • 货　　号：G5E7869A5C484A
  • 销售价：
购买数量：
  (库存9999+)
app hook

SID4-sC8

Introduction

HIGH RESOLUTION sCMOS QUANTITATIVE PHASE IMAGING CAMERA

Designed for life science and material inspection microscopes, SID4-sC8 brings fast, accurate and truly quantitative phase measurement in a compact, plug-and-play solution.
Biologists will benefit from label-free cell imaging, high sensitivity and automatic segmentation, while material scientists will have access to accurate refractive index measurement, laser damage analysis and surface characterization.

Key Features

  • sCMOS sensor
  • Single shot phase and intensity measurement
  • Magnification from x2.5 to x150
  • Compatible with acquisition software: Metamorph, Micromanager, NIS-Elements…
  • Imaging at any wavelength

Specifications

Sensor technologysCMOS
Wavelength range450-1000 nm
Aperture dimensions16.6 x 14.0 mm²
Phase spatial resolution19.5 μm
Phase & Intensity sampling852 x 720
Resolution (Phase)<1 nm RMS
Acquisition rate40 fps
Real-time processing frequencyUp to 15 Hz (full resolution)
ConnectionUSB 3.0
Dimensions140 x 82 x 80 mm
