产品特点：
功率稳定
电源自带过热、限流保护电路
可外接高速调制
适用于荧光激发、光谱分析、全息、激光制版等
性能参数：
波长Wavelength (nm) | 405±5 | |
输出功率 Output Power (mW) | 1~150 | |
工作方式 Operating Mode | CW | |
光斑模式 Beam Mode | 横模 Transverse | Near TEM00 |
纵模 Longitude | Multi-longitude | |
光束发散角Beam Divergence (full angle, mrad) | 1.2±0.2 | |
光束直径Beam Diameter at Aperture (mm) | ~2 | |
光束指向稳定性 Beam pointing stability（mrad） | 0.03 | |
光束椭圆度 Beam Roundness | >90% | |
功率稳定性Power Stability (RMS, over 8 hours) | <5% | |
出光孔高度 Aperture Position (mm) | 24.8 | |
激光器 Laser Head | 尺寸 Dimensions (L×W×H, mm) | 140 x 72 x 47 |
重量 Net Weight (kg) | 0.7 | |
电源调制External Modulation | 5V TTL / 5V Analogue | |
调制速率Modulating Repetition | 30KHz TTL / 10KHz Analogue | |
制冷方式Cooling System | TEC | |
预热时间Warm-up Time (minutes) | <5 | |
工作温度Operation Temperature (℃) | 18~30 | |
使用寿命Expected Lifetime (hours) | >10000 | |
保修期Warranty Time | 1 year | |

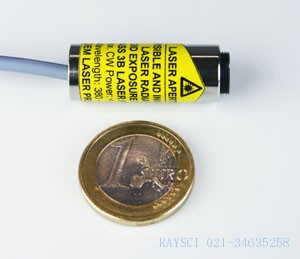

| Extremely Compact Blue High-Power Laser Diode OEM Modules: MONOPOWER?-405-50_100_150-MM |
 |
 |
| |||||
BLUE VIOLET 405 nm OEM laser module
Key Features:
Applications:
|
|
The FreeBeamTM405 Blue Laser Module is a highly integrated violet laser module with laser optics and electronics in a single package. It features fiber coupling option, very low optical noise and up to 100 KHz TTL modulation. Laser output power can be remotely controlled through electrical cable connected to the back panel of the package. Lower laser temperature setting can improve laser diode operational lifetime. The unique designed electrical driver enable this Laser Module has the lowest power consumptions compare to the similar product in the industry. The FreeBeamTM405 Blue Laser Module came with two different packages for you to choose from. Tube style part number start with FBT, box style start with FBB. FBB can allow you to remotely control Laser output power through electrical cable connect to the back panel of the package, while FBT can allow you to control optical power locally through a potential meter on the back panel of the laser tube. The FreeBeamTM405 Blue Laser Module also features the single longitudinal mode optional which provide narrow spectrum width to less than 100MHz and ultra stable wavelength at 0.02nm over the operational temperature range and life time. The FreeBeamTM405 Blue Laser Module is available for single mode and multi mode fiber coupled configuration. The FreeBeamTM405 Blue Laser Module is a Class III b laser product.
| |
| Technical Specifications | |
Wavelength Range | 405 nm ± 5nm |
Laser Output Power With TEM00 | 5mW to 120mW |
Laser Output Power | Max 570mW( multi transverse mode) |
Optical Noise (RMS) | 0.3% |
Laser Output Power Stability | 2% |
Laser Output Polarization Ratio | 100:1 |
Laser Beam Diameter (Elliptical beam) | 2.6X1.3mm |
Laser Beam Diameter (Circularized beam) | 2.4mm |
Beam Divergence (Elliptical beam) | 0.3X0.6mrad |
Beam Divergence (Circularized beam) | 0.3mrad |
Longitudinal Mode | Multi Mode or Single Mode Optional |
Optical Spectrum Width | 0.1nm or <100MHz for Single Longitudinal Mode |
Coherent Length | 1 meter for Single Longitudinal Mode |
Wavelength Stability | <0.02nm |
Beam Point Stability (box package) | <10urad/oC |
Warm up Time | 2 minutes |
Operational Temperature Range | 0°C ~ 40oC |
Laser Diode Life Time (MTBF) | 5000hrs |

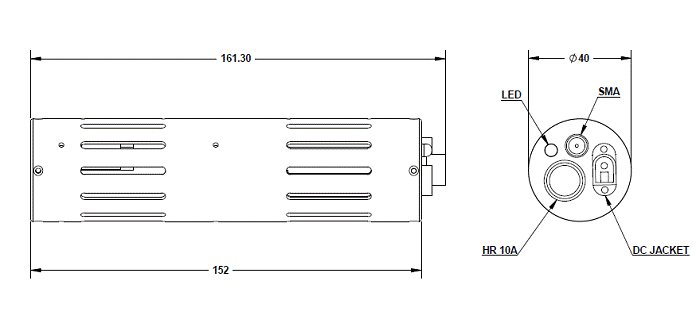

Mechanical Dimensions | |
Box Style Package | 100mm(L)X44mm(W)X38.5mm(H) |
Tube Style Package | f40mmX116.3mm |
T
ypical Spectrum Performance For Single Longitudinal Mode Version

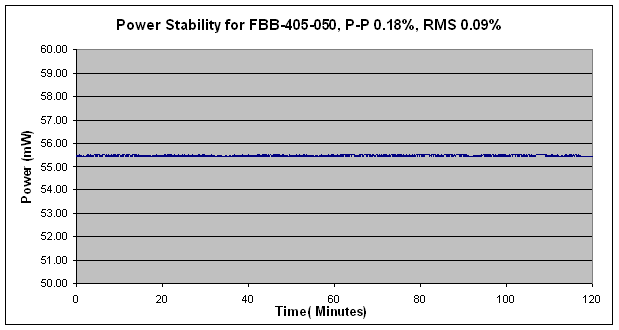

Typical Power Stability
Product Map
| Output Power Level(mW) | 5 | 10 | 20 | 40 | 50 | 60 | 80 | 95 | 115 | 200 | 400 | 570 |
| Free Space TEM00 Mode SLM | √ | * | ||||||||||
| Free Space TEM00 Mode | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
| Free Space Multi Transverse Mode | √ | √ | √ | |||||||||
| Single Mode Fiber Coupling | √ | √ | √ | * | ||||||||
| 50um Multi Mode Fiber coupling | √ | √ | √ | √ | √ | √ | ||||||
| 100um Multi Mode Fiber coupling | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
| 200um Multi Mode Fiber coupling | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 400um Multi Mode Fiber coupling | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
* Under Development
Ordering Information
| FXX | - | 405 | - | XXX | - | XXX | - | XX | - | X | X |
| Package | Wavelength | Power(mW) | Fiber Type | Connector Type/Beam shape | Modulation | CDRH |
Package |
|
FBT | Free Space Tube Style Laser Module |
FBB | Free Space Box Style Laser Module |
FC | Fiber Coupled Laser Module (box style package only) |
FBS | Single Longitudinal Mode laser diode |
Fiber Type |
|
MM1 | Multi Mode 50um Core Fiber |
MM2 | Multi Mode 100um Core Fiber |
MM3 | Multi Mode 200um Core Fiber |
MM4 | Multi Mode 400um Core Fiber |
SM | Single Mode Fiber |
PM | Polarization Maintained Fiber |
Free Space | FS |
Connector Type |
|
SMA | SMA Connector |
PC | FC/PC Connector |
APC | FC/APC Connector |
C | Circularized beam |
E | Elliptical beam |
Modulation |
|
0 | DC Operation |
1 | TTL Modulation |
CDRH |
|
0 | OEM Laser Module |
1 | CDRH Certified Laser Module |
Free Space Mechanical Dimension( Box )
Fiber Coupled Mechanical Dimension:
Blue High-Power Laser Diode OEM Modules: MONOPOWER?-405-50/100/150-MM [Detailed Datasheet, PDF]
