THz Gold Mirrors


查看大图

THz Gold Mirrors

THz Mirrors:Typical reflection curve is shown below. Measurements were made up to 1000 ??. However operating wavelength range is much wider.

  • 货  号:G549BCE68CB229
  • 销售价: ¥2300.00
购买数量:
  (库存9)
app hook
mirrors for applications where THz radiation has to be fully reflected.

Commom specification:

n
Material of substrateQuartz glass
Typeplano-plano
Dimensions tolerance,mm+/-025
Clear apperture, %>=90
Surface quality of polished surfaces, scr/dig40/20
Surface quality of ground surface, Ra2.5
Surface accuracy, ??633nm1/4
Coating
protected gold
Thickness of gold layer, nm
~400
nTHz mirrors

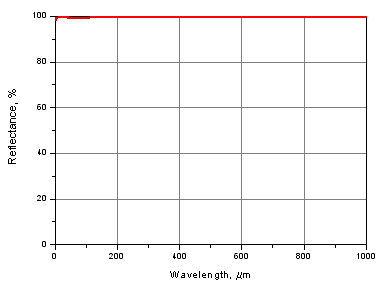

Typical reflection curve is shown below. Measurements were made up to 1000 ??. However operating wavelength range is much wider.

n
n

Fig. Reflection od THz mirror.

n

The following THz mirrors are available from stock:

n
No.DiameterThickness, mm
mminches
125.41.06.35
238.11.56.35
350.82.06.35
476.23.06.35
