THz Polarizers


查看大图

THz Polarizers

They are the sort of diffraction gratings and operate in transmission. The polarizer grating is made by forming grooves of a triangle profile on the substrate and subsequent deposition of a metal coating (aluminum) on one of the groove facets.

  • 货  号:GIPOF62-P
  • 品  牌:QPhotonics
  • 销售价:
购买数量:
  (库存10)
app hook
THz Polarizers

For operation in FIR and THz regions we supply polyethylene polarizers designed to polarize radiation from 7 microns to MM waves. They are the sort of diffraction gratings and operate in transmission. The polarizer grating is made by forming grooves of a triangle profile on the substrate and subsequent deposition of a metal coating (aluminum) on one of the groove facets.

n

Applications

n
  • THz microscopy
  • Molecular orientation studies of crystal and polymer films
  • Imaging
  • Sensors and detectors
  • FTIR spectroscopy
  • THz spectroscopy studies
  • n
n

Features

n
  • Used in extremely wide wavelength range from MIR (7 ??) to THz ( 3 mm and even more)
  • Substrate is high density polyethylene (HDPE)
  • High FIR transmission
  • High degree of polarization
  • Polarizers are supplied in holders (protective ring with marked grid direction)
  • n
n

Advantages of polyethylene grid polarizers compared to free-standing wire grid polarizers:

n
  • Lower cost
  • Possibility to use one polarizer for the wide wavelength range
  • n
n

Tab. 1 Parameters of polyethylene polarizers.

n
Substrate materialHard polyethylene (HDPE)
Spectral range, ??>= 7
Typical operation aperture, mm25
Standard holder size at typical aperture, mmD34.9 x 7.9
Maximal operation aperture, mm100*
Grooves per mm1200
Transmission efficiency K1 (average), %70 - 80
Transmission of unwanted radiation K2 , %<1 @ 8 ??
<0.1 @ 30-1000 ??
Degree of polarization (K1-K2)/(K1+ K2 ), %>98 @ 8 ??
>99.5 @ 30-1000 ??
Extinction ratio E=K1/(2 x K2)35-40 @ 8 ??
350-400 @ 30-1000 ??

* For square shape polarizer maximal aperture size can be higher, up to 110 x 110 mm .

n

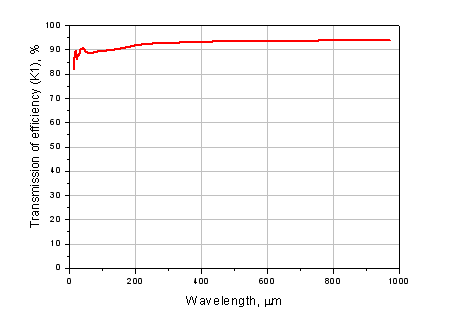

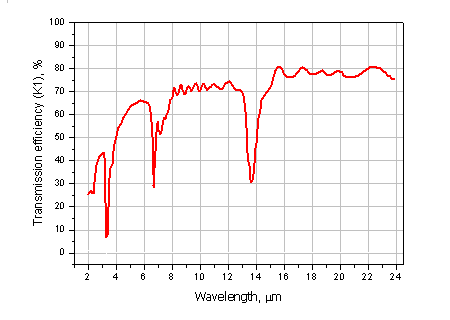

nTransmission efficiency
n

n

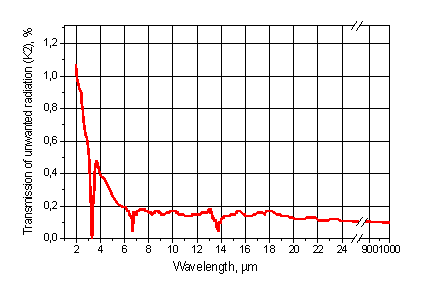

nTransmission of unwanted radiation

n

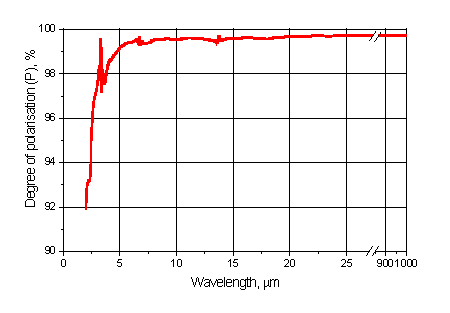

nDegree of polarization

n

Sizes and shapes

n

Polyethylene polarizers are produced using the ruled grating technique.

n

The grid is ruled onto large size material, which is subsequently cut. Thus clear aperture can be round or, on customer's request – square or rectangular.

n

Standard clear aperture (CA) of polarizers is D25 mm, which is available from our stock.

n

For quotation and delivery please fill in our request form.
